Home > Utility Trailer Springs > Eye-Loop

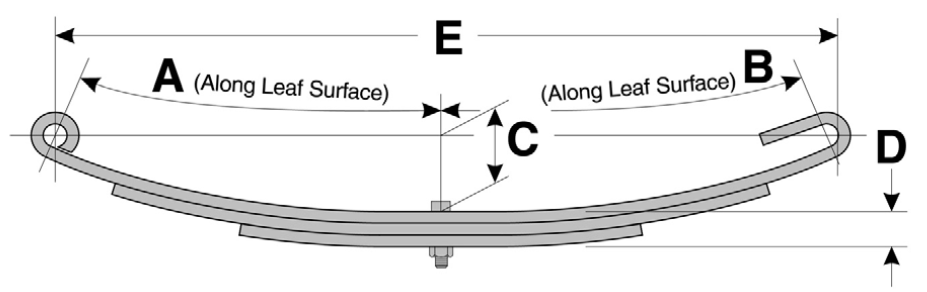

Trailer Springs with an Eye on one end and a Loop on the other end
Type ES (Eye/Slipper:Loop) Utility Trailer Springs
Part Width Dim. Dim. Dim. Dim. Dim. Bushing Leaves Grading Capacity
No. A B C D E
US-2004 1 3/4 10 3/4 10 3/4 2 1/2 0.815 20 9/16" 3 1/291,2/262 850
US-2002 1 3/4 10 3/4 10 3/4 3 0.553 20 9/16" 2 1/291,1/262 600
US-2007 1 3/4 11 1/4 11 3/4 3 1/4 1.048 21 3/4 9/16" 4 4/262 1,250
US-2006 1 3/4 11 1/8 11 3/4 3 1/4 0.786 21 3/4 9/16" 3 3/262 1,000
US-2008 1 3/4 11 1/8 11 3/4 3 1/4 1.31 21 3/4 9/16" 5 5/262 1,500
US-2010 1 3/4 11 1/8 11 3/4 3 1/4 1.572 21 3/4 9/16" 6 6/262 1,750
US-2011 1 3/4 11 1/2 11 1/2 3 1/2 0.786 22 9/16" 3 3/262 950
US-2012 1 3/4 11 1/2 11 1/2 3 1/2 1.048 22 9/16" 4 4/262 1,100
US-2021 1 3/4 12 13 1/2 2 1/2 1.196 24 1/2 9/16" 4 1/323,3/291 1,500
US-2022 1 3/4 12 13 1/2 2 1/2 1.8 24 1/2 9/16" 5 5/360 2,500
US-2023 1 3/4 12 13 1/2 2 1/2 2.52 24 1/2 9/16" 7 4/360 3,500
US-2013 1 3/4 12 1/2 13 3 1/4 0.873 24 9/16" 3 3/291 1,000
US-2015 1 3/4 12 1/2 13 3 1/4 1.164 24 9/16" 4 4/291 1,250
US-2017 1 3/4 12 1/2 13 3 1/4 1.455 24 9/16" 5 5/291 1,550
US-2020 1 3/4 12 1/2 13 3 1/4 1.746 24 9/16" 6 6/291 1,875
US-2024 1 3/4 12 1/2 13 3/4 2 7/8 1.44 25 1/2 9/16" 4 4/360 2,000
US-2005 1 3/4 13 1/2 14 3 1/2 0.969 26 1/4 1  1/32"** 3 3/323 1,250
US-2009 1 3/4 13 1/2 14 3 1/2 1.08 26 1/4 1  1/32"** 3 3/360 1,750
US-2014 1 3/4 13 1/2 14 3 1/2 1.44 26 1/4 1  1/32"** 4 4/360 2,250
US-2016 1 3/4 13 1/2 14 3 1/2 1.8 26 1/4 1  1/32"** 5 5/360 2,850
US-2018 1 3/4 13 1/2 14 3 1/2 2.16 26 1/4 1  1/32"** 6 6/360 3,300
US-2019 1 3/4 13 1/2 14 3 1/2 2.52 26 1/4 1  1/32"** 7 7/360 3,500
** Requires NB-144 bushing which is sold separately    NB-144  (click to order)

Loop End Bushing - Nylon & Steel Sleeve Bushing Assembly    NB-212  (click to order)

  B-1465  - 9/16 x 3" cross bolt for 1-3/4" wide springs                Common Trailer U-bolts
Products (Total Items: 22)
More results: [1] 2 Next Page

US-2014
US-2014
Type EL (Eye/Loop) Utility Spring 1.75in. Width, 26-1/4in. Overall Length (E) (13.625in. (A) X 13.625in. (B) along leaf surface), 1.44in. Thickness (D), 3.5in. Arch ( C)
$30.36
Buy
US-2004
US-2004
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 20in. Overall Length (E), (10.75in. (A) X 10.75in. (B) along leaf surface), 0.815in.Thickness (D), 2.5in. Arch (C)
$19.42
Buy
US-2005
US-2005
Type EL (Eye/Loop) Utility Spring 1.75in. Width, 27in. Overall Length (E) (13.625in. (A) X 13.625in. (B) along leaf surface), 0.969in. Thickness (D), 3.5in. Arch ( C)
$22.94
Buy
US-2006
US-2006
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 21.75in. Overall Length (E), (11.125in. (A) X 11.75in. (B) along leaf surface), 0.786in.Thickness (D), 3.25in. Arch (C)
$20.16
Buy
US-2007
US-2007
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 21.75in. Overall Length (E), (11.25in. (A) X 11.75in. (B) along leaf surface), 1.048in.Thickness (D), 3.25in. Arch (C)
$22.44
Buy
US-2008
US-2008
Type EL (Eye/Loop) Utility Spring 1.75in. Width, 21.75in. Overall Length (E), (11.125in. (A) X 11.75in. (B) along leaf surface), 1.31in.Thickness (D), 3.25in. Arch (C)
$29.07
Buy
US-2009
US-2009
Type EL (Eye/Loop) Utility Spring 1.75in. Width, 26.25in. Overall Length (E) (13.5in. (A) X 14in. (B) along leaf surface), 1.08in. Thickness (D), 3.5in. Arch ( C)
$26.08
Buy
US-2010
US-2010
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 21.75in. Overall Length (E), (11.125in. (A) X 11.75in. (B) along leaf surface), 1.572in.Thickness (D), 3.25in. Arch (C)
$27.72
Buy
US-2011
US-2011
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 22in. Overall Length (E), (11.5in. (A) X 11.5in. (B) along leaf surface), 0.786in.Thickness (D), 3.5in. Arch (C)
$18.94
Buy
US-2002
US-2002
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 20in. Overall Length (E), (10.75in. (A) X 10.75in. (B) along leaf surface), 0.553in.Thickness (D), 3in. Arch (C)
$18.47
Buy
US-2013
US-2013
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 24in. Overall Length (E), (12.5in. (A) X 13in. (B) along leaf surface), 0.873in.Thickness (D), 3.25in. Arch (C)
$24.62
Buy
US-2024
US-2024
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 25.5in. Overall Length (E), (12.5in. (A) X 13.75in. (B) along leaf surface), 1.44in.Thickness (D), 2.875in. Arch (C)
$33.16
Buy
US-2015
US-2015
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 24in. Overall Length (E), (12.5in. (A) X 13in. (B) along leaf surface), 1.164in.Thickness (D), 3.25in. Arch (C)
$28.04
Buy
US-2016
US-2016
Type EL (Eye/Loop) Utility Spring 1.75in. Width, 26-1/4in. Overall Length (E) (13.625in. (A) X 13.625in. (B) along leaf surface), 1.8in. Thickness (D), 3.5in. Arch ( C)
$35.42
Buy
US-2017
US-2017
Type EE (Eye/Loop) Utility Spring 1.75in. Width, 24in. Overall Length (E), (12.5in. (A) X 13in. (B) along leaf surface), 1.455in.Thickness (D), 3.25in. Arch (C)
$29.54
Buy
More results: [1] 2 Next Page
