Home > Utility Trailer Springs > Eye-Eye
Trailer Springs with an Eye on both ends

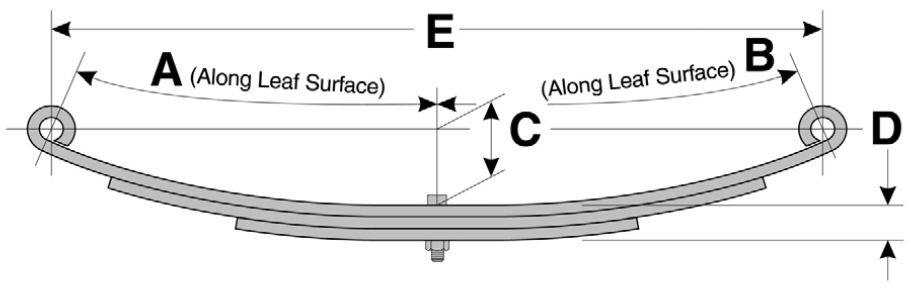

Type EE (Eye/Eye) Utility Trailer Springs and Boat Trailer Springs
Part Width Dim. Dim. Dim. Dim. Dim. Bushing Leaves Grading Capacity
No. A B C D E
US-1004 1 3/4 10 10 3 0.97 18 3/8 9/16" 3 3/323 1,600
US-1003 1 3/4 10 3/4 10 3/4 3 0.542 19 1/2 9/16" 2 2/262 850
US-1008 1 3/4 10 3/4 10 3/4 3 1.048 20 9/16" 4 4/262 1,000
US-1007 1 3/4 11 1/8 11 1/8 3 1/2 0.97 20 9/16" 3 3/323 1,500
US-1009 1 3/4 11  3/16 11  3/16 3 3/16 0.786 20 3/8 9/16" 3 3/262 1,000
US-1028 1 3/4 11  3/16 11  3/16 3 3/8 1.106 20 1/2 9/16" 4 2/291,2/262 1,400
US-1011 1 3/4 12 1/8 12 1/8 4 1.048 22 3/8 9/16" 4 4/262 1,000
US-1012 1 3/4 12 1/8 12 1/8 4 1.572 22 3/8 9/16" 6 6/262 1,600
US-1017 1 3/4 12 1/2 12 1/2 3 1.455 24 9/16" 5 5/291 1,650
US-1014 1 3/4 12 1/2 12 1/2 3 1/2 0.937 23 1/8 9/16" 3 2/323,1/291 1,250
US-1046 1 3/4 12 1/2 12 1/2 3 1/2 1.08 23 1/8 9/16" 3 3/360 1,750
US-1063 1 3/4 12  9/16 12  9/16 3 5/8 1.44 23 1/8 9/16" 4 4/360 2,500
US-1020 1 3/4 12 5/8 12 5/8 3 1/2 0.873 23 1/2 9/16" 3 3/291 1,250
US-1037 1 3/4 12 5/8 12 5/8 3 1/2 1.164 23 1/2 9/16" 4 4/291 1,650
US-1054 1 3/4 12 5/8 12 5/8 3 1/2 1.455 23 1/2 9/16" 5 5/291 2,050
US-1085 1 3/4 13  3/16 13  3/16 3 1/2 2.049 24 7/8 9/16" 6 3/360,3/323 3,500
US-1018 1 3/4 13 1/4 13 1/4 3 0.97 25 1/4 9/16" 3 3/323 1,250
US-1035 1 3/4 13 1/4 13 1/4 3 1.043 25 1/4 9/16" 3 2/360,1/323 1,500
US-1052 1 3/4 13 1/4 13 1/4 3 1.08 25 1/8 9/16" 3 3/360 1,750
US-1051 1 3/4 13 1/4 13 1/4 3 1.162 25 1/8 9/16" 3 2/401,1/360 2,000
US-1044 1 3/4 13 1/4 13 1/4 3 1.292 25 1/8 9/16" 4 4/323 1,625
US-1067 1 3/4 13 1/4 13 1/4 3 1.44 25 1/8 9/16" 4 4/360 2,250
US-1065 1 3/4 13 1/4 13 1/4 3 1.522 25 1/8 9/16" 4 2/401,2/360 2,500
US-1079 1 3/4 13 1/4 13 1/4 3 1.563 25 1/8 9/16" 4 3/401,1/360 3,000
US-1075 1 3/4 13 1/4 13 1/4 3 1.8 25 1/8 9/16" 5 5/360 2,700
US-1019 1 3/4 13 1/4 13 1/4 3 2.049 25 1/8 9/16" 6 3/360,3/323 3,200
US-1013 1 3/4 14 14 4 1/4 0.72 26 9/16" 2 2/360 1,000
US-1015 1 3/4 14 14 4 1/4 1.048 26 9/16" 4 4/262 1,150
US-1040 1 3/4 14 14 4 1/4 1.08 26 9/16" 3 3/360 1,500
US-1060 1 3/4 14 14 4 1/4 1.44 26 9/16" 4 4/360 2,000
US-1071 1 3/4 14 14 4 1/4 1.8 26 9/16" 5 5/360 2,500
US-1083 1 3/4 14 14 4 1/4 2.16 26 9/16" 6 6/360 2,900
US-1088 1 3/4 14 14 4 1/4 2.52 26 9/16" 7 7/360 3,400
US-1092 1 3/4 14 14 4 1/4 2.807 26 9/16" 7 7/401 4,550
US-1091 1 3/4 14 14 4 1/4 2.88 26 9/16" 8 8/360 4,000
US-1001 1 3/4 14  1/16 14  1/16 4 1/4 0.524 26 9/16" 2 2/262 575
US-1005 1 3/4 14  1/16 14  1/16 4 1/4 0.786 26 9/16" 3 3/262 850
US-1034 1 3/4 14  1/16 14  1/16 4 1/4 1.31 26 9/16" 5 5/262 1,500
US-1016 1 3/4 14 1/8 14 1/8 3 0.937 27 9/16" 3 2/323,1/291 1,000
US-1055 1 3/4 14 1/8 14 1/8 3 2.807 27 9/16" 4 3/360,1/323 1,950
US-1087 1 3/4 14 1/8 14 1/8 3 1/4 2.324 27 9/16" 6 4/401,2/360 3,800
US-1093 1 3/4 15 15 3 1/4 1.44 28 3/4 9/16" 4 4/360 1,800
US-1029 1 3/4 15 15 4 1/4 0.524 28 9/16" 2 2/262 540
US-1030 1 3/4 15 15 4 1/4 0.786 28 9/16" 3 3/262 740
US-1094 1 3/4 15 15 4 1/4 1.048 27 3/4 9/16" 4 4/262 975
US-1098 1 3/4 15 15 4 1/4 1.292 27 3/4 9/16" 4 4/323 1,475
US-1033 1 3/4 15 3/8 15 3/8 4 1.455 29 1/8 9/16" 5 5/291 1,250
US-1038 1 3/4 15 3/8 15 3/8 4 1.834 29 1/4 9/16" 7 7/262 1,550
US-1039 1 3/4 15 3/8 15 3/8 4 2.037 29 1/4 9/16" 7 7/291 1,750
US-1041 1 3/4 16 1/8 16 1/8 4 5/8 1.08 30 9/16" 3 3/360 1,250
US-1042 1 3/4 16 1/4 16 1/4 4 5/8 2.16 30 9/16" 6 6/360 2,500
US-1043 1 3/4 16 1/4 16 1/4 4 5/8 2.88 30 9/16" 8 8/360 3,200
US-1096 2 14 14 3 1/2 1.604 26 1/2 1 9/32"* 4 4/401 2,750
US-1095 2 14 14 4 1/4 1.422 26 1 9/32"* 6 6/237 1,475
US-1097 2 15 15 3 1.048 29 JFC 4 4/262 1,100
 * Requires PB-333 bushings which are sold separately  - click to order PB-333 to order

               B-1465  - 9/16 x 3" cross bolt for 1-3/4" wide springs                   Common Trailer U-bolts
Products (Total Items: 57)
More results: [1] 2 3 4 Next Page

US-1041
US-1041
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 30in. Overall Length (E), (16.125in. (A) X 16.125in. (B) along leaf surface), 1.08in.Thickness (D), 4???in. Arch (C)
$35.02
Buy
US-1015
US-1015
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 26in. Overall Length (E) (14.0625in. (A) X 14.0625in. (B) along leaf surface), 1.048in. Thickness (D), 4.25in. Arch ( C)
$27.49
Buy
US-1005
US-1005
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 26in. Overall Length (E) (14.0625in. (A) X 14.0625in. (B) along leaf surface), 0.786in. Thickness (D), 4.25in. Arch ( C)
$27.49
Buy
US-1003
US-1003
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 19.5in. Overall Length (E), (10.75in. (A) X 10.75in. (B) along leaf surface), 0.542in.Thickness (D), 3in. Arch (C)
$12.66
Buy
US-1034
US-1034
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 26in. Overall Length (E) (14.0625in. (A) X 14.0625in. (B) along leaf surface), 1.31in. Thickness (D), 4.25in. Arch ( C)
$32.92
Buy
US-1028
US-1028
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 20.5in. Overall Length (E) (11.1875in. (A) X 11.1875in. (B) along leaf surface), 1.106in. Thickness (D), 3.375in. Arch ( C)
$23.00
Buy
US-1020
US-1020
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 23.5in. Overall Length (E) (12.625in. (A) X 12.625in. (B) along leaf surface), 0.873in. Thickness (D), 3.5in. Arch ( C)
$19.50
Buy
US-1018
US-1018
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 25.125in. Overall Length (E) (13.25in. (A) X 13.25in. (B) along leaf surface), 0.937in. Thickness (D), 3.1875in. Arch ( C)
$22.57
Buy
US-1016
US-1016
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 27in. Overall Length (E) (14in. (A) X 14in. (B) along leaf surface), 1.043in. Thickness (D), 3in. Arch ( C)
$23.98
Buy
US-1009
US-1009
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 20.375in. Overall Length (E) (11.09375in. (A) X 11.09375in. (B) along leaf surface), 0.786in. Thickness (D), 3.1875in. Arch ( C)
$19.96
Buy
US-1001
US-1001
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 26in. Overall Length (E) (14.0625in. (A) X 14.0625in. (B) along leaf surface), 0.524in. Thickness (D), 4.25in. Arch ( C)
$22.78
Buy
US-1087
US-1087
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 27in. Overall Length (E), (14.125in. (A) X 14.125in. (B) along leaf surface), 2.324in.Thickness (D), 3¹??in. Arch (C)
$47.60
Buy
US-1006
US-1006
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 27in. Overall Length (E), (14.125in. (A) X 14.125in. (B) along leaf surface), 0.815in.Thickness (D), 3¹??in. Arch (C)
$16.27
Buy
US-1042
US-1042
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 30in. Overall Length (E), (16.25in. (A) X 16.25in. (B) along leaf surface), 2.16in.Thickness (D), 4???in. Arch (C)
$55.17
Buy
US-1040
US-1040
Type EE (Eye/Eye) Utility Spring 1.75in. Width, 26in. Overall Length (E) (14in. (A) X 14in. (B) along leaf surface), 1.08in. Thickness (D), 4.25in. Arch ( C)
$25.48
Buy
